GPS Communications Analysis

This application uses the Communications Library, the Navigation Accuracy Library, and the Navigation Advanced Library to model GPS communications at a site for a single time. You can select from nine different GPS signal configurations, and show four different communications metrics for GPS signals received by a GpsReceiver. Additionally, you can add jammers on either L1, L2 or L5 frequencies.

This example provides a good starting point for understanding the setup of a GpsCommunicationsFrontEnd, configuring interference sources and retrieving link budgets for analysis. The Navigation Communications topic has more information on how this system works.

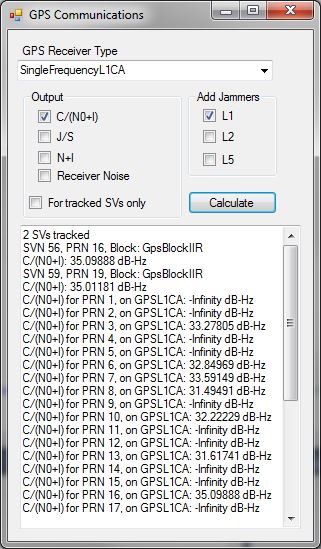

GPS Communications Analysis

The source code files for the application can be found in the DME Component Libraries install at Examples\GpsCommunications\.
