Environmental & Loss Factors

The Communications and Radar Modules model several environmental and other factors that cause or contribute to signal loss. Technical aspects of such factors are discussed below.

Free Space Loss

Free space loss is given by:

where:

L_FS is free space loss (in linear units)

c is the speed of light. The value used in STK is 2.99792458e08 m/s.

F is transmitter output frequency.

r is range between the transmitter and receiver.

Atmospheric Loss Models (Atmospheric Absorption Models)

There are currently four atmospheric absorption models included in STK. These models include:

ITU-R P.676-5
TIREM 3.31
Simple Satcom
Script Plugin

Simple Satcom Model

This atmospheric absorption model used in the Communications and Radar modules is valid over the frequency range from 1 GHz to 350 GHz. Signals operating at frequencies outside this range will have no attenuation. This model is only applicable between the altitude of 20km to 100km. If the signal between a Transmitter or Receiver is not within this altitude range, no attenuation will occur. Use of this model is dependent on two factors:

Is the model enabled at the scenario level (using the option on the RF Environment page)?
Does the signal actually pass through the atmosphere?

The gaseous absorption loss L_GA (in dB units) is then computed as follows:

where:

, b, , β, ζ are the frequency-dependent model coefficients. The exact values used in the equations are determined using logarithmic interpolation based on the transmitter frequency. The table of raw values is found in the data file GACoeff.dat in the directory
<STK install folder>/STKData/CentralBodies/Earth/Rf.
These values in this file may be changed by the user if desired.

T is the surface air temperature in degrees C. Obtained from the receiver or transmitter's parent object from the value specified on the Atmosphere page.

ρ is the surface water vapor concentration (g/m³).

θ is the local elevation angle from a ground station to a satellite.

In the case of satellite-to-satellite communication at very low grazing altitudes, the signal passes through the atmosphere; the Simple Satcom model WILL attenuate the signal.

Ippolito, Louis J., Jr., Radiowave Propagation in Satellite Communications , New York: Van Nostrand Reinhold (1986), Ch. 3.

Urban and Terrestrial Models

There are currently two Urban and Terrestrial models included in STK. These models include:

Two Ray
Urban Propagation Wireless InSite RT

Two Ray (Fourth Power Law) Model

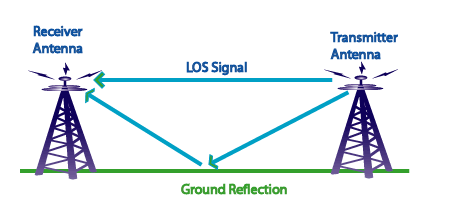

This propagation model is applicable to short-range and low antenna heights for the transmitter and the receiver antennas. The situation may arise where the receiving antenna may experience a destructive ground reflection in addition to the LOS transmission.

If the Transmitter or Receiver has an height above ground greater than 300m, a loss will not be computed.

The total propagation loss (free space and two ray destructive signal loss) may be approximated by the well known "fourth power law" model. The portion describing the two ray destructive signal loss is computed according to the following equation:

where

λ is the wavelength.

d is the link range.

h_t is the height of the transmitter above ground.

h_r is the height of the receiver above ground.

Satisfying the following condition will ensure the validity of the model. If this condition is not satisfied, a warning indicating that the loss was not computed is displayed in the message viewer.

STK computes the free space and the two ray components separately and reports them independently under the free space and atmospheric loss columns in the Link Budget reports.

The sum of the free space loss and the two ray components constitute the "fourth power law" loss.

System Temperature

System temperature is defined as

where

T_a = antenna temperature (defined below)

T_r = T_tr (1/L_r - 1), where
T_tr = receiver transmission line temp. (290 K default), and
L_r = receiver transmission line loss (user input, in linear units),

T_e = T_o (F_n - 1), where
T₀ = reference noise temperature of 290 K, and
F_n = receiver noise figure (user input, in linear units), and

L_r = receiver transmission line loss (user input, in linear units)

System and antenna noise temperature are affected significantly by antenna polarization.

Antenna Temperature

Antenna temperature is defined as

T_a = T_External + T_Sun + T_Rain (ground-based objects), or

T_a = T_Sky + T_Ground + T_Sun + T_rain + T_cosmic +T_other (all other objects), where

T_external = F(θ) , where
F(θ) is the interpolated antenna noise temperature as a function of the elevation angle based on user supplied external data. Third order Lagrange interpolation is performed. If the elevation angle is outside the range supplied by the user the closest value will be used,

where

T_SModel is the Sun noise temperature as calculated by the Sun model. The model is defined over the frequency range from 140 MHz to 100 GHz and can be calculated using:

where

f = frequency in GHz, and

= integrated antenna gain over region intersected by Sun or Earth,

T_Rain = T (1 - L_Rain) , where

T = surface temperature in Kelvin, and

L_rain = rain loss (in linear units),

T_sky = T (1 - L_GA ), where

L_GA = gaseous absorption loss (in linear units),

T_ground is defined analogously to T_sun

T_cosmic = 2.7 K, and

T_other = user provided value.

Maral, G., and M. Bousquet, Satellite Communications Systems: Systems, Techniques and Technology , 2^nd ed., Chichester: Wiley (1993), sec. 8.3.3.1.

Refraction Models

The following constants and equations relate to refracted elevation and Line of Sight constraints.

ITU Refraction Model

The ITU Refracted Elevation model is based on International Telecommunications Union Recommendation 834-4 (2003), equations (12-14). For the Refracted Line of Light constraint, the refracted elevation to the horizon is computed via equations (8-11) of the same ITU Recommendation. For elevation angles below the horizon, the refracted Line of Sight access constraint employs the unrefracted elevation angle to compute the range to the Earth. If the target range is less than this value, the constraint is satisfied.

4/3 Earth Radius Method

The 4/3 Earth Effective Radius method defines the refracted elevation angle θ_ref as

where

h_t = altitude of the target,

r_eff = 4/3 earth radius below the RF (comm or radar) object,

h_rfo = altitude of the RF object, and

R = RF object-target range

For the Line of Sight constraint, the refracted range to the horizon r_hor is calculated via trigonometry of right triangles:

The refracted elevation angle of the horizon θ_hor is computed as

If θ_ref > θ_hor , line of sight exists, and the constraint is satisfied. If θ_ref < θ_hor and R < R_hor, compute the range to the ground R_g at θ_ref. If R_g > R , the constraint is satisfied.
