Dipole Antenna Pattern
Dipole antennas are modeled analytically, using modeling equations that can be found in standard antenna texts.
See, e.g., Balanis, Constantine, Antenna Theory: Analysis and Design, New York: Wiley (1982), chapter 4, and Johnson, Richard C, Antenna Engineering Handbook, 3rd ed., New York: McGraw-Hill (1993), chapter 4.

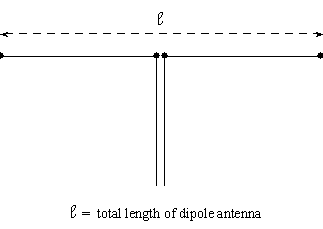

The basic attributes of a dipole antenna pattern are illustrated in the following figure, in which the dimension labeled with a script l represents the length of the antenna:
Dipole antenna pattern
Dipole radiation is lateral to the axis of the antenna and is simulated for a wide range of antenna lengths, from values less than the wavelength of the signal to values several times the wavelength.
Since the radiation is lateral to the antenna axis, the gain null points are along the antenna boresight.

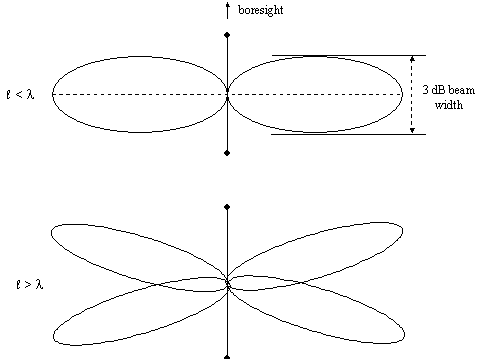

As illustrated in the following figure, if the antenna length is less than the wavelength of the signal, a single sidelobe is generated in each direction.
Dipole radiation & antenna length/wavelength ratio
The antenna's 3 dB beam width is proportionate to its length in this case. However, if the antenna length exceeds the wavelength, the sidelobe splits one or more times and the 3 dB beamwidth is not predictable in the present model.
Only farfield radiation conditions are modeled here; nearfield radiation effects are not simulated. Also, small diameter (thin wire) antennas are assumed, and effects stemming from larger antenna diameters are not modeled.
This antenna uses a polar coordinate system.
When you select this antenna type, the following parameters need to be specified:
| Field | Description |
|---|---|
| Design Frequency |
The frequency of the antenna. For an embedded antenna on a receiver, transmitter or radar, this value corresponds to the Frequency entered on the Model Specs tab for the transmitter or receiver and the Transmitter Specs tab for the Radar. For an antenna linked to a receiver, transmitter, or radar, the Antenna Design Frequency value gets overridden by the Frequency value set on the Model Specs tab for the transmitter or receiver, and the on the Transmitter Specs tab for the Radar. However, when computing the antenna's gain matrix (or a link budget, etc.) from one of the objects linking to the antenna, that other object's frequency settings override the antenna's Design Frequency setting. |
| Length | The total length of the dipole antenna (that is, the dimension designated by  in the illustration above). |
| Length/Wave Length Ratio | The ratio of length () to wave length (lambda). Modifying this value changes the length of the Dipole antenna. |
| Efficiency | The efficiency factor of the antenna, varying from 0 to 100 percent. Since no antenna is perfect, the efficiency factor allows you to specify the degradation in performance. Typical values fall in the range of 70 to 90 percent. |
Make certain that the value you enter for Length represents the TOTAL length of the dipole antenna, NOT the length of one of its two segments. Otherwise, the results will not be what you expect. If you use the default frequency of 14.5 GHz for a communications receiver or transmitter (instead of a frequency in the usual range for dipole operation), make certain to adjust the Length accordingly. For example, you might wish to use a Length of 0.02 m for single sidelobes or 0.03 m for split sidelobes. Also, if you use the Az-El orientation method, the elevation should be set at 0 deg instead of the default value of 90 deg. The default antenna length of 1.00 m is good for frequencies ranging between 300 and 1000 MHz.
