Both the transmitter and receiver objects have a data provider for graphing the filter’s frequency response. To graph the filter frequency response, go to the transmitter's or receiver's Basic Definition properties page, click the Filter tab and select Use under Filter Model. The transmitter’s data provider is titled Transmitter Spectrum and Filter and the receiver’s is titled Receiver Filter. See Creating Graphs and Strip Charts for details on creating and using custom graphs.

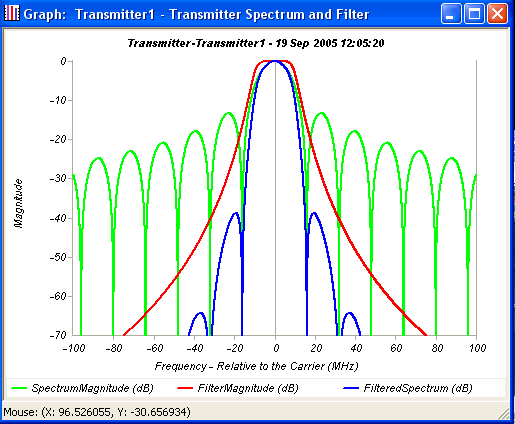

The following is a graph of a signal PSD, transmitter filter frequency response, and the resultant filtered spectrum. The graph was created using the Transmitter Spectrum and Filter data provider.
