Measuring Access Duration

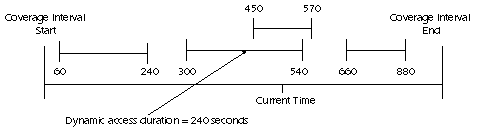

Computing the longest access duration
Overlapping accesses from multiple assets are not concatenated to form longer access intervals.
Option | Description |
---|---|
Average | The average duration of all access intervals over the entire coverage interval |
Maximum | The maximum duration of all access intervals over the entire coverage interval |
Minimum | The minimum duration of all access intervals over the entire coverage interval |
Percent Above | The value computed indicates that the point is within an access interval with a duration of at least D, X percent of the time, where D is the computed value and X is the Percent Level that you specify |
Std Deviation | The standard deviation of the duration of all access intervals calculated over the entire coverage interval |
Sum | The sum of the duration of all access intervals over the entire coverage interval |
Displaying Access Duration in a Graphics Window
Graphics are used to represent the static and dynamic value of Access Duration. Graphics representing the dynamic values are only displayed during animation. If Satisfaction is enabled, the graphics follow the general behavior for satisfaction graphics. If Satisfaction is disabled, the graphics appear as described in the following table:
Static or Animation? | Grid points highlighted if they... |
---|---|
Static | are covered at least once during the coverage interval, regardless of the duration of the access interval |
Animation | are currently within an access interval, regardless of the duration of the interval |
The Satisfaction Threshold value is the duration of an access interval. The default behavior for Access Duration corresponds to a satisfaction setting of Greater Than 0.
