Hop RPO Sequence

The Hop RPO sequence generates a "hop" to move the chase satellite from the current position to a new desired relative position. It accomplishes this in a single maneuver, which occurs at the beginning of the sequence. You specify the duration for the chase satellite to arrive at the desired final relative position.

This sequence does not stop the relative motion at the end. If you want to stop the relative motion at the end of the sequence, use the HopAndStop RPO sequence instead.

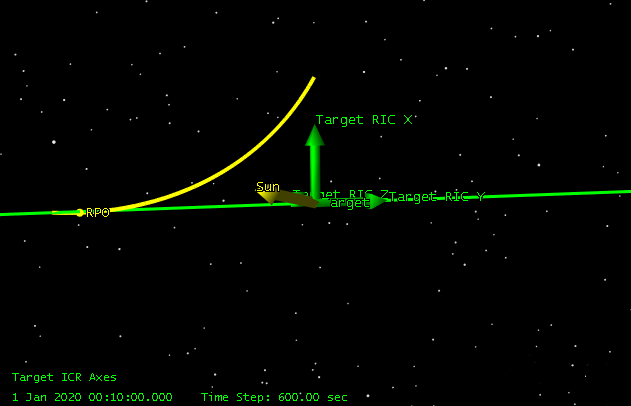

The following picture shows a hop from an initial position on the VBar at -1000m to a final position of +500 m on the RBar over two hours of flight time.

Watch the following video to learn more about the RPO sequence on this page.

Sequence Parameters

OptionDescription
Desired_RadialEnter the final radial offset to the target after the hop.
Desired_InTrackEnter the final in-track offset to the target after the hop.
Desired_CrossTrackEnter the cross-track offset to the target after the hop.
Hop_DurationEnter the duration of the hop sequence from the initial position to the desired relative position.
Engine_NameEnter, as a string, the name of the finite maneuver engine model.
Maneuver_TypeSelect the type of maneuver, "Impulsive" or "Finite," from the drop-down list.
