Natural Motion Circumnavigation to RBar RPO Sequence

The Natural Motion Circumnavigation (NMC) to RBar RPO sequence stops an NMC when it crosses the RBar; you can specify either +RBar or –Rbar. The sequence stops the relative motion at that point. If the NMC does not cross the RBar, the sequence issues an error message and terminates.

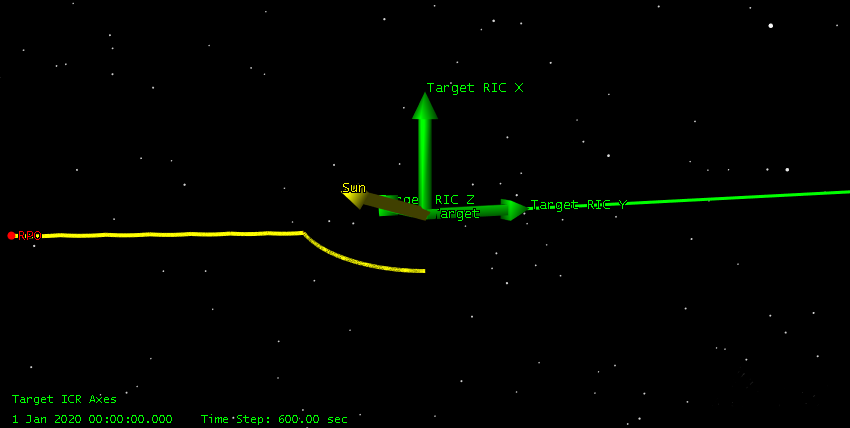

The following picture shows an NMC initiated near the –VBar and then stopped when it crosses the –Rbar.

Watch the following video to learn more about the RPO sequence on this page.

Sequence parameters

Option	Description
PlusRBar	Enter, as a Boolean, either True to stop the NMC on the +RBar or False to stop on the -RBar.
Engine_Name	Enter, as a string, the name of the finite maneuver engine model.
Maneuver_Type	Select the type of maneuver, "Impulsive" or "Finite," from the drop-down list.
WhoAmI	Enter, as a string, the name of the current satellite.
