Natural Motion Circumnavigation to VBar RPO Sequence

The Natural Motion Circumnavigation (NMC) to VBar RPO sequence stops an NMC when it crosses the VBar; you can specify either +VBar or –Vbar. The sequence stops the relative motion at that point. If the NMC does not cross the VBar, the sequence issues an error message and terminates.

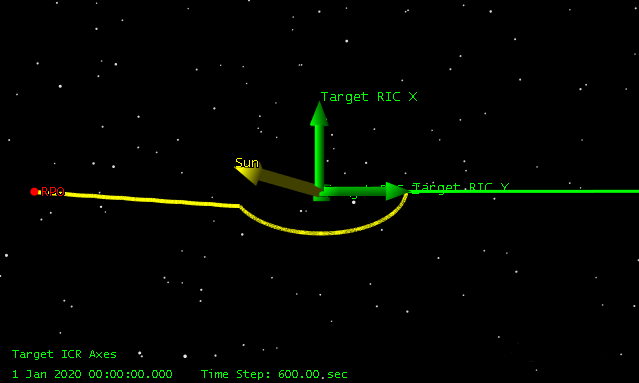

The following picture shows an NMC initiated near the –VBar and then stopped when it crosses the +VBar.

Watch the following video to learn more about the RPO sequence on this page.

Sequence parameters

Option	Description
PlusVBar	Enter, as a Boolean, either True to stop the NMC on the +VBar or False to stop on the -VBar.
Engine_Name	Enter, as a string, the name of the finite maneuver engine model.
Maneuver_Type	Select the type of maneuver, "Impulsive" or "Finite," from the drop-down list.
WhoAmI	Enter, as a string, the name of the current satellite.
