Set Initial State RPO Sequence
The Set Initial State RPO sequence sets the initial Cartesian position and velocity of the chase satellite relative to the reference satellite and also sets the initial epoch. You should only use this sequence once in an RPO mission; it must be at the beginning, after setting the reference vehicle (using the Set Reference Vehicle RPO).

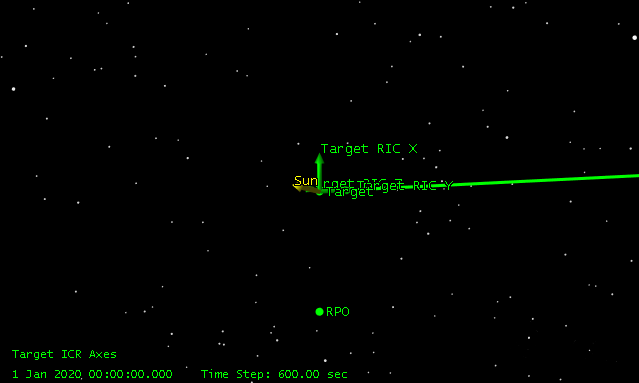

The following picture shows an initial state at -1000 meters on the RBar.
Watch the following video to learn more about the RPO sequence on this page.
Sequence parameters
Option | Description |
---|---|
WhoAmI | Enter, as a string, the name of the current satellite. |
Init_Radial_Pos | Enter, in distance units, the initial radial offset from the target. |
Init_InTrack_Pos | Enter, in distance units, the initial in-track offset from the target. |
Init_CrossTrack_Pos | Enter, in distance units, the initial cross-track offset from the target. |
Init_Radial_Vel | Enter the initial radial velocity relative to the target. |
Init_InTrack_Vel | Enter the initial in-track velocity relative to the target. |
Init_CrossTrack_Vel | Enter the initial cross-track velocity relative to the target. |
Initial_Epoch | Enter the initial state epoch in UTCG. |
ThisSequence | Enter, as a string, the name of this sequence. This is nominally Set_Initial_State, but if you insert the sequence multiple times in the MCS, Astrogator adds a monotonically increasing number to the end of the name (Set_Initial_State1, Set_Initial_State2, etc.). |
