Mean Satellite Temperature Using SEET

STK Premium (Space) or STK Enterprise
You can obtain the necessary licenses for this tutorial by contacting AGI Support at support@agi.com or 1-800-924-7244.

The results of the tutorial may vary depending on the user settings and data enabled (online operations, terrain server, dynamic Earth data, etc.). It is acceptable to have different results.

Capabilities Covered

This lesson covers the following STK Capabilities:

  • STK Pro
  • Space Environment and Effects Tool (SEET)

Problem Statement

As a DMSP satellite operator, you need to determine the variation of the mean temperature of a satellite panel.

Solution

Use STK and STK's Space Environment and Effects Tool (SEET) capability to determine the variation of the mean temperature of a DMSP panel. You will use SEET's Vehicle Temperature component which estimates the mean temperature of a satellite due to direct solar and reflected Earth radiation, using simple thermal balancing equations. The nominal case is for a spherical satellite; optionally, this component can compute the temperature on a planar surface of specified geometry and orientation.

The following information should be determined before developing a Vehicle Temperature model scenario using STK:

  • The vehicle shape is represented by a flat surface panel.
  • The area and orientation of the panel of interest is 0.8 m2 normal to Earth.
  • The emissivity, absorptivity and heat dissipation characteristics of the material(s) comprising the panel are 0.924, 0.248, and 010 respectively.
  • Earth albedo should be set within the supported range that most closely approximate the conditions expected to be encountered during the mission.

Video Guidance

Watch the following video. Then follow the steps below, which incorporate the systems and missions you work on (sample inputs provided).

Create a Scenario

  1. Create a new scenario by using the New Scenario Wizard. You can also extend the File menu and select New...
  2. Rename the scenario SEET_VehicleTemperature.
  3. Set the analysis period to the following:
    OptionValue
    Analysis Start Time1 Jul 2016 16:00:00.000 UTCG
    Analysis End Time2 Jul 2016 16:00:00.000 UTCG

Add a Satellite

Add a satellite to the scenario that exercises the Vehicle Temperature model

  1. Insert a new satellite using the following method:
    2. Option Value
    Select an Object to be Inserted: Satellite
    Select a Method Orbit Wizard
  2. Click the Insert button.

  3. Set the following options in the Orbit Wizard.

      Option Value
      Name Sat_VehicleTemp
      Type Orbit Designer
      Semi-major axis 7000 km
      Eccentricity 0.0
      Inclination 110 degrees
      Argument of Perigee 0.0
      RAAN 15
      True Anomaly 0.0
  4. Click OK.
  5. Close the Orbit Wizard tool.
  6. Close the Insert STK Objects tool.

Configure the DMSP Satellite

The properties related to the calculation of satellite temperature will be displayed on the Thermal Model page.

  1. Open the satellite's () properties ().
  2. Select the Basic - SEET Thermal page.
  3. Set the Shape Model to Plate.
  4. Set the Cross-Sectional Area to 0.8 m2.
  5. Set the Normal Vector to Sat_VehicleTemp Earth. The normal vector identifies the orientation of the plate to Earth. For this tutorial, use the default value for albedo, which is near the center of the usual range of this value. If you'd like, you can tailor the scenario to more extreme conditions by modifying the Earth Environmental properties.
  6. Click OK.

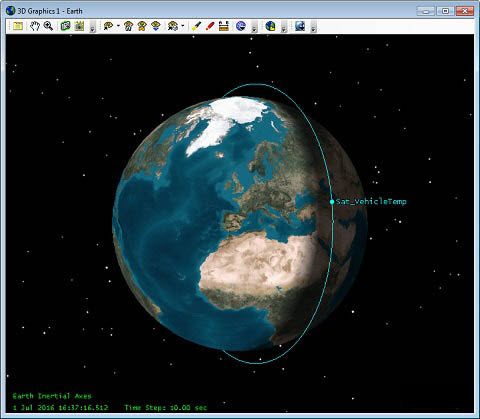

Animate the Scenario

  1. Bring the 3D Graphics window to the front.
  2. Play () the scenario.

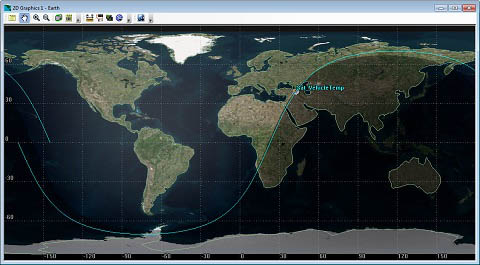

    3. Notice that the satellite's orbital plane appears to maintain itself over the Earth's terminator, especially if viewed from the pole.

  3. Reset () the scenario when you are finished.
  4. Save () the scenario.

Create a Report of the Surface Temperature of the Satellite Panel

  1. Open the Report & Graph Manager ().
  2. Click the New Report () button.
  3. Enter a name for the report like VehicleTemp.
  4. Expand () the SEET Vehicle Temperature Model Data Provider.
  5. Move () the Definition field to the Report Contents field.
  6. Click the New Section button.
  7. Double-click the SEET Vehicle Temperature Data Provider. This will move all of those contents to the second section of the report.
  8. Click OK.
  9. Generate the VehicleTemp report.

You will notice that the temperature varies slightly over time. Let's take a look at this in a graph.

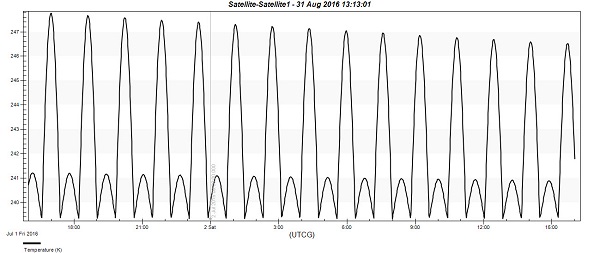

Create a Vehicle Temperature Graph

  1. Click the New Graph Style () button.
  2. Enter a name for the Graph like VehicleTemp.
  3. Expand () the SEET Vehicle Temperature Data Provider.
  4. Move () Temperature to the Y-Axis.
  5. Click OK.
  6. Generate the VehicleTemp graph.

Results and Analysis

From the report and graph, one concludes that the mean panel temperature fluctuates by about eight degrees Celsius during the scenario considered. This rather constant temperature is not unexpected because the panel is not afforded an opportunity to escape solar heating by entering the shadow of the Earth, based on the report which indicates 100% percent solar intensity over many revolutions.
