STK Tab

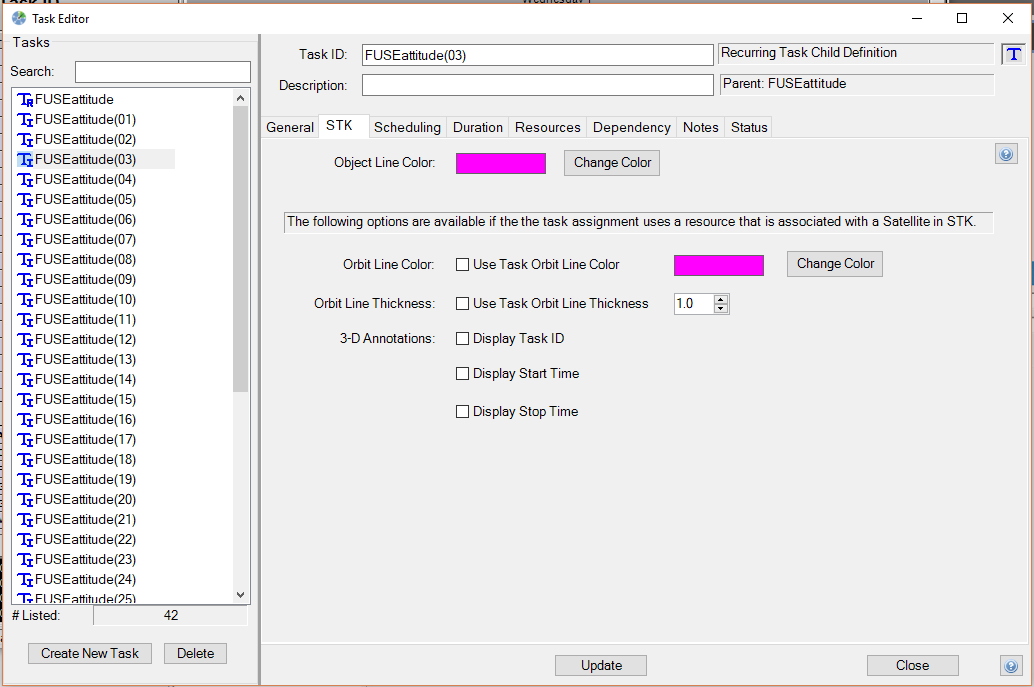

The STK tab contains the controls that allow you to define STK animation properties for a task's assignments. These settings effect the animations for the STK 3-D display, but not the 2-D display.

To display the Duration Tab, select Task -> New or Task -> Edit from the Menu Bar, then click on the STK Tab.

STK Tab

Object Line Color Button

The Object Line Color button allows you to set the color of the line drawn between STK objects that relate to a task assignment. The line will be drawn between a pair of associated STK objects, if those objects are related to the resources used in an assignment.

Orbit Line Color Checkbox

The Orbit Line color checkbox allows you to toggle if the satellite orbit changes to the defined color during assignment. The assignment must use a resource that is related to a STK satellite.

Orbit Line Color Button

The Orbit Line Color button allows you to set the color of the satellite orbit during the assignment. The assignment must use a resource that is related to a STK Satellite.

Orbit Line Thickness Checkbox

The Orbit Line Thickness checkbox allows you to toggle if the thickness of the satellite orbit changes during the assignment. The assignment must use a resource that is related to a STK satellite.

Orbit Line Thickness Numeric Value

The Orbit Line Thickness numeric value allows you to set the thickness of the satellite orbit during the assignment. The assignment must use a resource that is related to a STK satellite.

Display Task ID Checkbox

The Display Task ID checkbox allows you to toggle if the task IF is displayed on the satellite orbit during the task assignment. The assignment must use a resource that is related to a STK satellite.

Display Start Time Checkbox

The Display Start Time checkbox allows you to toggle if the task assignment start time is displayed on the satellite orbit during the assignment. The assignment must use a resource that is related to a STK satellite.

Display Stop Time Checkbox

The Display Stop Time checkbox allows you to toggle of the task assignment stop time is displayed on the satellite orbit during the assignment. The assignment must use a resource that is related to a STK satellite.
