Defines the spectral properties for the selected band as described below.

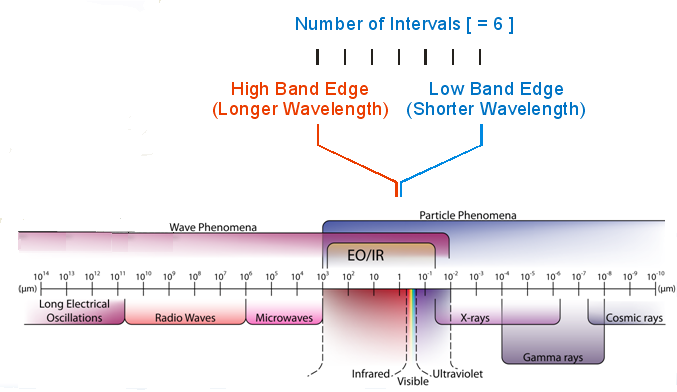

Spectral Band Edge Wavelengths
Low. Shortest wavelength that the sensor responds to and at least 1 nanometer less than the High value.
High. Longest wavelength that the sensor responds to and at least 1 nanometer greater than the Low value.
Number of Intervals
The number of divisions used in calculations between Low and High wavelengths (larger numbers generally produce more accurate results but take longer to calculate).
Spectral shape mode. Specify an overall band spectral response or default to the individual optical transmission and quantum efficiency spectral characteristics.
Relative spectral response file. SRF-formatted file that specifies the overall relative spectral response for this band and that will be linearly interpolated to the special range and samples specified in the other spectral properties.
RSR units. Determines if the RSR spectral values are in energy units or quantum units.
