Page Preview Form

The page preview form contains the controls and displays that allows you to view and prepare the displayed graphics for printing.

The page preview may be displayed by:

• Clicking the button on the Tool Bar while the STK Scheduler Main Display is set to the Graphical View.
• Clicking the Print Button from any Resource Chart.

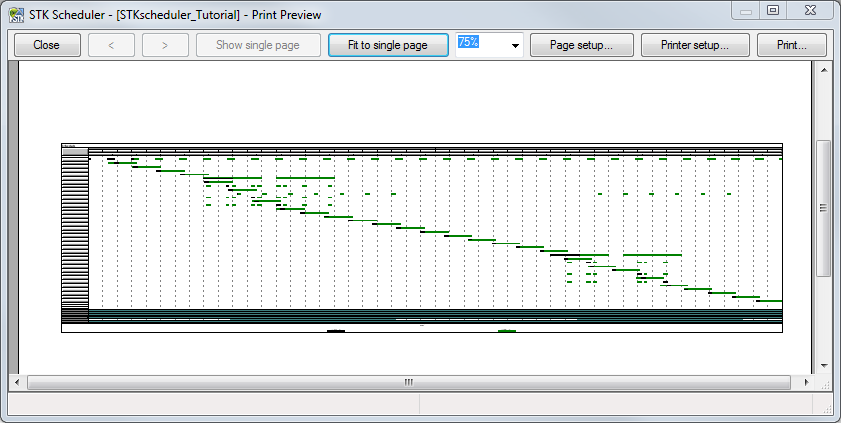

Page Preview Form

Close Button

Clicking the Close button closes the Print Preview Form without printing.

Previous Button

Clicking the Previous button causes the preceding page, of a multiple page document, to be previewed.

This button is only active when in single page mode and when viewing any page except the first.

Next Button

Clicking the Next button causes the following page, of a multiple page document, to be previewed.

Single Button

Clicking the Single button causes the print preview to go into Single Page Mode. In this mode, only a single page is displayed in the form at a time.

This button is available only while in Overview Mode.

Overview Button

Clicking the Overview button causes the print preview to go into Overview Mode. In this mode, all of the pages to be printed will be displayed in the form simultaneously.

Fit to Page Button

Clicking the Fit to Page button causes the entire previewed graphic to be placed onto a single page for printing. A preview of this option will be displayed in the form.

Page Setup Button

Clicking the Page Setup button opens the Page Setup Form. This form allows attributes of the printed version of the previewed graphic to be defined.

Printer Setup Button

Clicking the Printer Setup button opens a local print setup interface. This form allows you to specify the hardware settings that will allows the previewed graphic to be printed.

Print Button

Clicking the Print button opens a local print interface. This form allows you to specify the hardware settings that will allows the previewed graphic to be printed.
