Select STK Object Form
The select STK object form contains the controls necessary to allow the you to select an STK object from the associated scenario.
This action is required on two occasions:
- When associating an STK object with an STK Scheduler resource
- When defining STK object-based reports to define discrete windows of time
For both of these cases STK Scheduler uses an identical form.

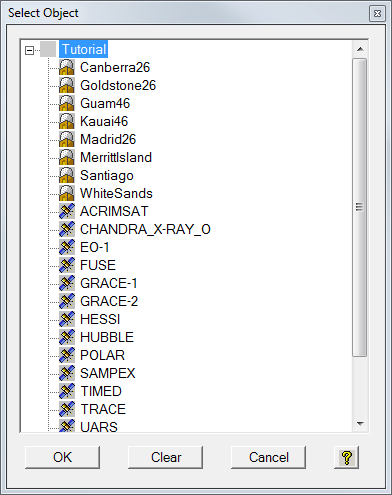

Select STK Object Form
STK Object List View
The STK object listview contains a tree view of all the available STK objects in the associated STK scenario. An object from this list may be selected by clicking on it.
The associated STK Scenario may be defined on the STK Properties Tab of the Schedule Properties Form.
STK Scheduler recognizes only the following STK object types:
- Aircraft
- Area Targets
- Facilities
- Ground Vehicles
- Launch Vehicles
- Missiles
- Places
- Planets
- Radars
- Receivers
- Satellite
- Sensors
- Ships
- Stars
- Targets
- Transmitters
OK Button
Clicking the OK Button accepts the selected STK object and closes the Select STK Object Form. The name of the selected STK object will be placed in the appropriate textbox of the calling form.
Double-clicking on an object in the listview performs the same action.
Clear Button
Clicking the clear button rejects any selected STK object, closes the Select STK Object Form, and clears the textbox on the calling form.
Cancel Button
Clicking the Cancel button rejects any selected STK object and closes the selected STK Object Form.
