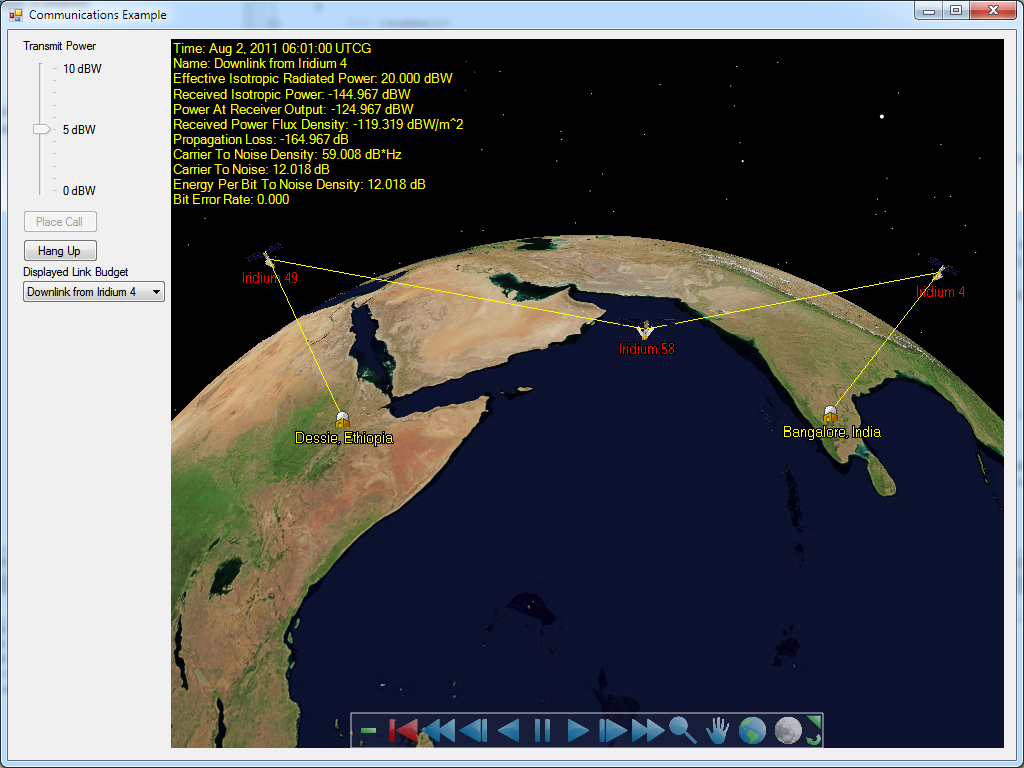

This application uses the Communications Library to setup a call between two locations and visualize the scenario and link budget results. Using SimpleDigitalTransmitter, Transceiver and SimpleReceiver, the application looks at the link budget for the call, allowing the user to vary the transmission power of the calling phone, and on which links to report the link budget parameters. The application also shows how visualization can be incorporated into an analysis scenario, bringing in Insight3D and its various platforms, markers and models. For more information on the Communications Library, see the Communications topic.
The source code files for the application can be found in the STK Components install at Examples\Communications\.
