KeplerianElementsArgumentOfPeriapsis Property

Gets the argument of periapsis of the orbit, in radians.

Namespace:  AGI.Foundation.Coordinates
Assembly:  AGI.Foundation.Core (in AGI.Foundation.Core.dll) Version: 20.2.404.0 (20.2.404.0)
Syntax
public double ArgumentOfPeriapsis { get; }

Property Value

Type: Double
Remarks

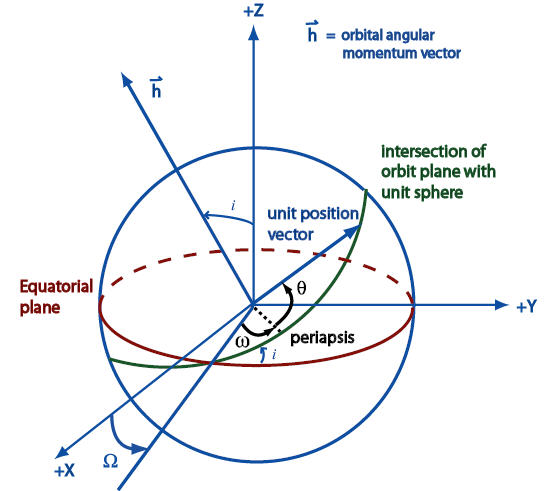

The argument of periapsis, ω, is the angular distance between the ascending node and periapsis:

In the above diagram, Ω is the right ascension of the ascending node (RAAN), θ is the true anomaly, and i is the inclination.

See Also
