The Chain Object

A chain is a list of objects (either individual or grouped into constellations or satellite collection subsets) in order of access. To identify the objects in a chain, right-click the chain object () in the Object Browser, then launch the Properties Browser from the menu that appears. Select the Definition page in the Properties Browser to see the objects in the chain.

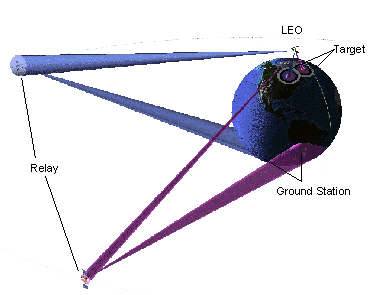

The following illustration shows a complex chain that is defined as:

  • two ground stations
  • a LEO satellite
  • two relays
  • two targets
