Receiver Models
Use the Receiver's Basic Definition page to select a model type from the Component Browser. Then, depending on the model selected, you can specify various parameters related to the characteristics of the receiver, the antenna it uses, and the environment in which it operates.
STK Communications provides the following receiver models:
- Cable Receiver
- Complex Receiver
- Laser Receiver
- Medium Receiver
- Multibeam Receiver
- Script Plugin Laser Receiver
- Script Plugin RF Receiver
- Simple Receiver
In addition, you can define your own receiver models using the Component Browser.

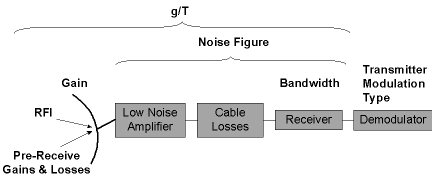

The following drawing illustrates some basic receiver parameters and RF environment factors.
