Transmitter Models
Use the Transmitter's Basic Definition page to select a model type from the Component Browser. Then, depending on the model selected, specify various parameters related to the characteristics of the transmitter, the antenna it uses, and the environment in which it operates.
STK Communications provides the following models:
Transmitter Models
- Simple Transmitter
- Cable Transmitter
- Medium Transmitter
- Complex Transmitter
- Multibeam Transmitter
- Plugin Transmitter
- Laser Transmitter
- GPS Satellite Transmitter
Basic Re-Transmitter Models
In addition, you can define your own transmitter models using the Component Browser.

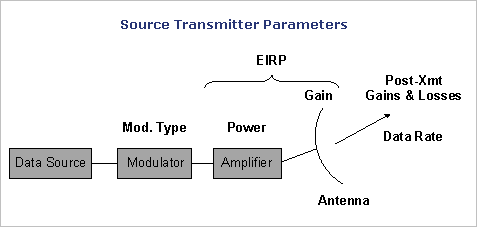

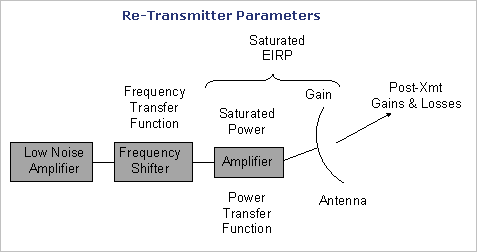

The following figures illustrate some parameters and environmental factors for transmitters and re-transmitters.
