Resource List/Histogram Chart

The Resource List/Histogram Chart is a graphical display of resources and their availabilities.

The Resource List/Histogram Chart may be viewed by clicking the button on the STK Scheduler Tool Bar.

Resource List/Histogram Chart

If this view appears blank, STK Scheduler may be in a graphics-off mode. See Graphic Updates Feature for more information.

The left-hand portion of the Resource List/Gantt Chart provides a list of all resources within a schedule.

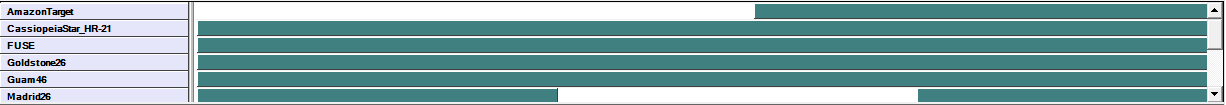

On the right-hand side of the Resource List/Histogram Chart is the graphical portion of the chart. The colored areas indicate windows of time that represent when a resource is available. The description of the various colors used in the Histogram chart may be found on the Legend.

If a resource appears red in color, this indicates that a violation has occurred. Right-click on the resource and select Report from the pop-up menu. The resource report will indicate the nature of this violation.

The Resource List/Histogram Chart uses the same time scale axis as the Task List/Gantt Chart.

At anytime the Histogram Chart may be refreshed using the button on the Tool Bar. The Histogram Chart may be hidden by de-selecting Show Resources on the View Menu.
