Periodic Example

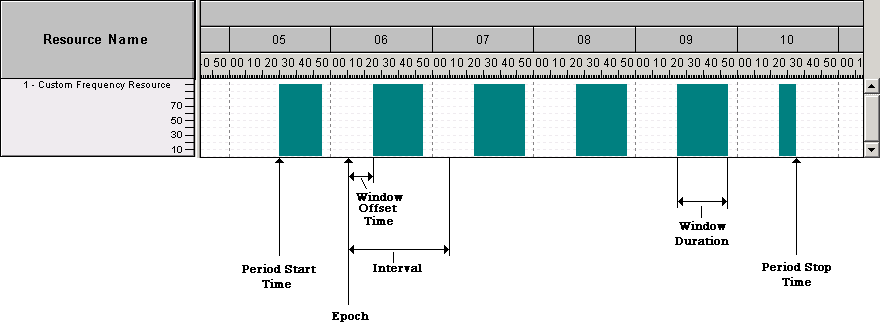

The following graphic shows an example of a custom periodic definition applied to a resource's availability.
Custom Periodic Resource Availability:
The table below details the parameters used to define the custom periodic window shown above.
| Parameter | Value | Window Defined On |
|---|---|---|
| Period Start Time | April 17, 2003 05:30:00 | Periodic Window Definition |
| Period Stop Time | April 17, 2003 10:35:00 | Periodic Window Definition |
| Frequency | Custom | Periodic Window Definition |
| Epoch | April 17, 2003 06:10:00 | Periodic Window Definition |
| Interval | 1 hour | Periodic Window Definition |
| Window Offset Time | 15 minutes | Window Definition |
| Window Duration Time | 30 minutes | Window Definition |
