Status Tab

The status tab contains a group of controls that informs you of some of the basic information about a resource and how it is used in the schedule.

To display the resource status tab, select Resource -> New or Resource -> Edit from the Menu Bar, then click on the Status Tab.

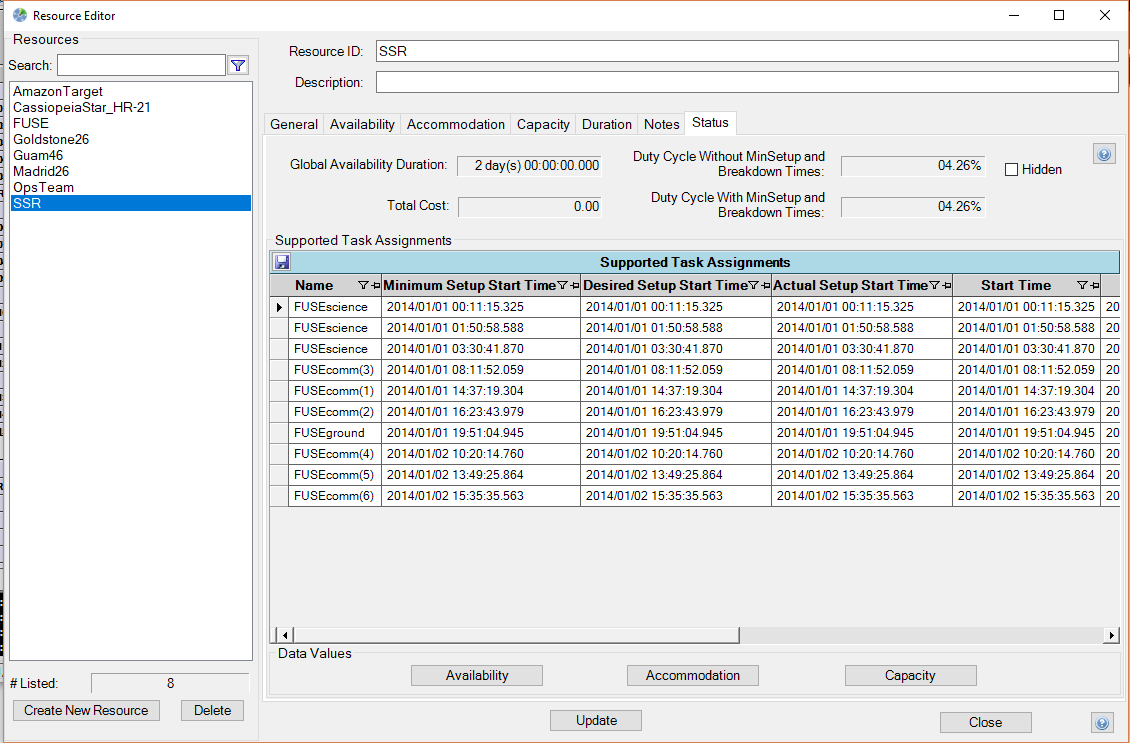

Status Tab

Global Availability Duration Textbox

The global availability duration textbox displays the total time that the resource is available to be used by a task. The number displayed in the textbox is provided for user information only and is therefore not editable.

Duty Cycle Without Setup Times Textbox

The duty cycle without setup times textbox displays the percentage of the total possible time that the resource is used by a task, ignoring setup times. The number displayed in the textbox is provided for user information only and is therefore not editable. This textbox will display accurate information only after the schedule deconflictor is run.

Duty Cycle With Setup Times Textbox

The duty cycles with setup times textbox displays the percentage of the total possible time that the resource is used by a task, taking setup times into account. The number displayed in the textbox is provided for user information only and is therefore not editable. This textbox will display accurate information only after the schedule deconflictor is run.

Setup times are defined by clicking the edit button on the Timeslot Definitions Tab of the Task Definition Form.

Tasks Supported List

The tasks support listbox displays all of the tasks that use the resource. For each task, the table also includes times that the resource is used by a task and the amount of capacity the resource has following the task. The information displayed in the textbox is provided for user information only and is therefore not editable. The listbox will display accurate information only after the schedule deconflictor is run.

Export Table Button

The export table button located in the Supported Task Assignments bar exports the tables as an excel compatible .csv file.

Availability Button

The availability button opens a Data Values Report that shows the availability values for the duration of the scheduling period.

Accommodation Button

The availability button opens a Data Values Report that shows the accommodation values for the duration of the scheduling period.

Capacity Button

The availability button opens a Data Values Report that shows the instantaneous capacity values for the duration of the scheduling period.
