Axes: Lines

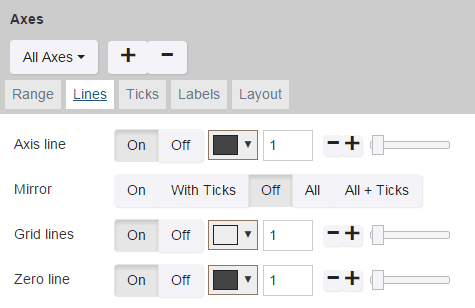

The Axes tab is used to set the appearance of lines in the axes.

Some controls only appear for certain plots or with certain options selected.

Control Name	Use/Options
Axis line	Show or hide the selected axis line. If shown ("On"), set the properties of the line. On Color -- see Color Picker [0]/-/+/slider -- scale is 0.1 to 10 Off
Mirror	Mirrors the selected axis on the other side of the plot area. On -- mirror the axis With Ticks -- mirrors the axis ticks as well Off -- no mirror All -- mirrors all axes currently selected All + Ticks -- mirrors the ticks for all axes currently selected
Background	On Off Color -- see Color Picker
Grid lines	On Color -- see Color Picker [0]/-/+/slider -- scale is 0.1 to 10 Off
Zero line	On Color -- see Color Picker [0]/-/+/slider -- scale is 0.1 to 10 Off
