Graphical View

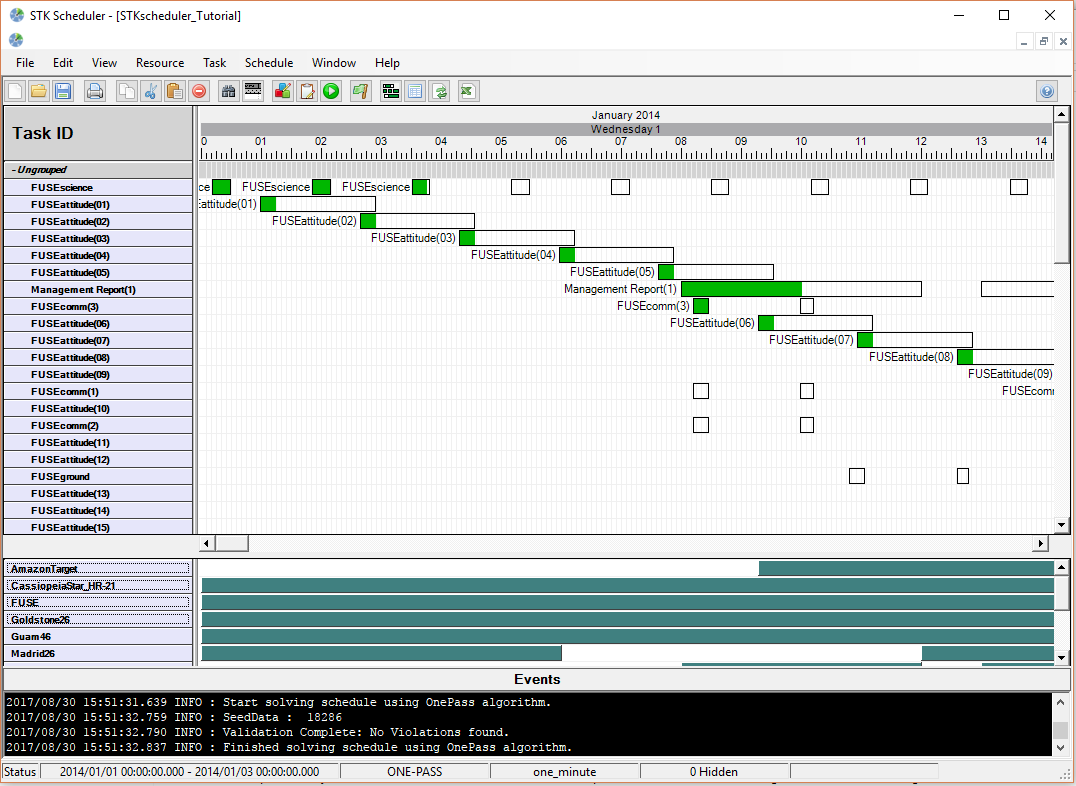

The Graphical View is a graphics-based display of tasks and resources.

The Graphical View may be viewed by clicking the button on the Astro Scheduler Engine Tool Bar.

The Graphical Display is divided into two areas:

• Task List/Gantt View
• Resource List/Histogram Chart

Graphical View

At anytime the Graphical View may be refreshed using the button on the Tool Bar.

IF this view appears blank, Astro Scheduler Engine may be in a graphics-off mode. See Graphic Updates Feature for more information.
